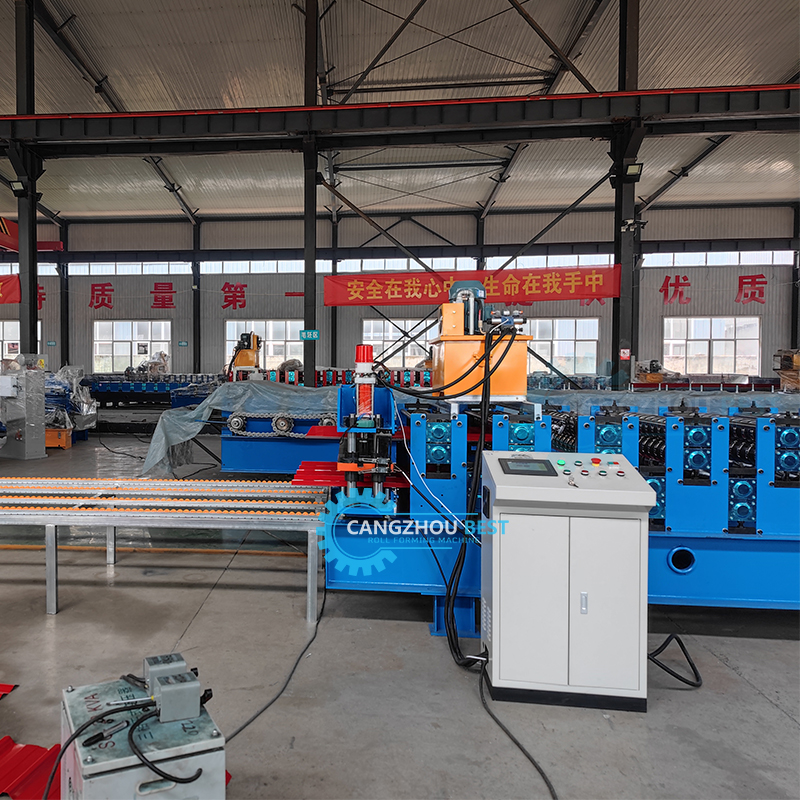

Color Coated Steel Profile Trapezodial Sheet&Corrugated Double Layer Roofing Roll Forming Machine
Working flow:
Decoiler----feeding-----roll forming-----pressing&cutting------output table
Specifications:
| Part details | Item Name | Specification |
| Material | Raw material | Galvanized steel or PPGI |
| | Thickness | 0.3-0.8 mm |
| Machine | Roller station | Depend on customer' drawing |
| | Shaft diameter | 70 mm |
| | Shaft material | 45# steel with 0.05mm chrome |
| | Roller material hardness 30-40 HRC | 45# steel with 0.05mm chrome |
| | Machine size | About 6×1.5×1.3 m |
| | Machine weight | About 7.5 ton |
| | Machine color | As customer' request |
| | Working speed | 8-20 m/min |
| Cutter | Hardness | 50-65 HRC |
| | Cutting tolerance | ± 1 mm |
| | Material | Cr 12 |
| | Operate | Hydraulic cutting |
| Power | Driving way | Chain 1 inch |
| | Main power | 7.5 kw |
| | Pump power | 4 kw |
| | Voltage | 380v/50HZ,3P or customize as customer' request |
| Control system | PLC brand | Delta made in Twaiwan |
| | Screen | Touchable screen |
| | Language | Chinese and English or add language as customer need |
| Decoiler | Operation | Manual |
| | Weight capicatity | 5 ton |
| | Price | Free as gift |
| Receiving table | Operation | Manual |
| | Length | 3 m |
| | Price | as finally drawing |
Packing Method
Main machine is packaged with plastic film
Transportation
All machines need one 40 feet container to hold
Payment Term
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.
Delivery Time
Within 35 days after receiving deposit.
Warranty
One years, and we will provide technical support for wholelife of the equipment.
If some parts of machine broken within 1 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 1 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
