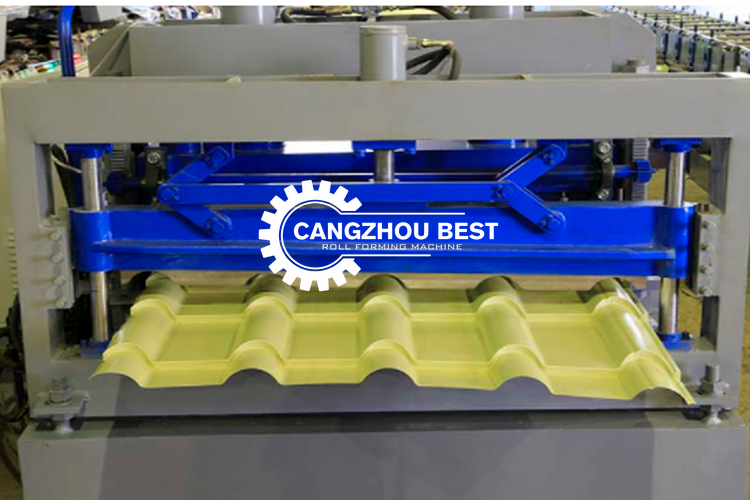

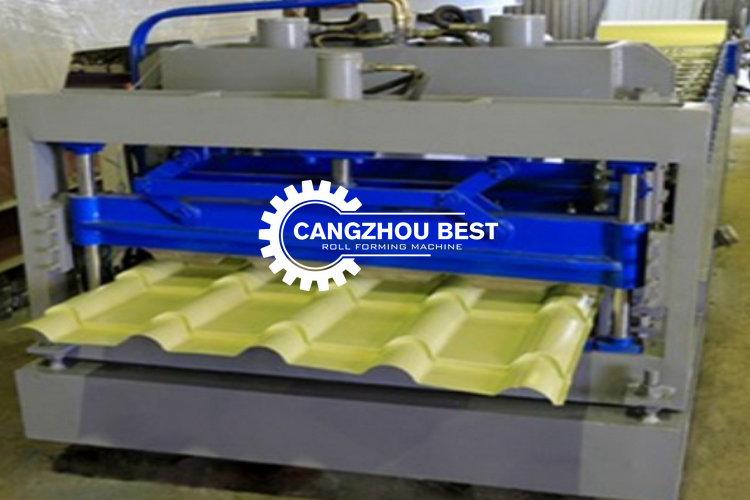

Corrugated Iron Sheet 12m/Min Roof Tile Roll Forming Machine

  • 1
  • 2

Brand Name : BEST

Certification : CE

Place of Origin : CHINA

MOQ : 1 set

Price : USD$8000---10000

Payment Terms : L/C, T/T

Supply Ability : 20 sets/month

Delivery Time : 30 work days

Tile type : Colored Glaze Steel

Voltage : 380V 50Hz 3phases

Condition : New

Weight : 6T roof sheet roll forming machine

Use : Roof/wall

After-sales service provided : Engineers available to service machinery overseas

Contact Now

The double layer roll forming machine consist of uncoiler and its base,infeed guides,fixed position driven forming machine, shearing device,hydraulic station,PLC control console and so on.
our company has hundreds of profile models for this series roll forming machine,We can design different kinds of profile for machine, as aper customers requirement.

This machine can produce two kind of profiles, up layer is corrugated type, down layer is trapezoid.
Both two type sheet feeding width are 1000 mm and these two profile drawings are popular

Technical Parameter







Item NO.





Description





Offered Specification
1.1 Rolling speed 12m/min
1.2 Rolling thickness 0.3mm-0.8mm
1.3 Raw material Color painted coils
1.4 Dimension About 8000×1600×1200(mm)
1.5 Effective width 836mm
1.6 Feeding Coil width 1250mm
1.7 Roller stations About 18 stations
1.8 Roller material 45#forge steel, coated with chrome
1.9 Shaft diameter Φ76mm
1.10 Transmission By chain 1.2 inch
1.11 Material of chain 45# forged steel with frequency quenching, 12A
1.12 Material of cutting Cr12Mov with quench HRC58-62°
1.13 Tolerance 10m+-0.5mm
1.14 Hydraulic station 4kw



Main Components

No. Name Quantity
1 5 tons passive de-coiler 1 set
2 Main roll forming machine 1 set
3 Control box 1 unit
4 Hydraulic station 1 unit
5 Out tables 2 units



Advantage for Roll Forming Machine

1. Reasonable Price

2. High Quality

3. 12 Months Warranty

4. More Than 10 Years Experience

5. Durable

6. Afrer-sales service

Working Flow of Roll Forming Machine

De-coiler—→Level device —→Main roll forming machine—→Hydraulic cutting—→ Run out table

Roll forming machine name Hot sale South America 840 Trapezoid steel roof tile roll forming machine
Brand of plc Delta
Material of rollers High grade 45# steel with 0.05mm chormed
Material of shafts Soild high grade 45# steel
Diameter of shaft 75mm
Material of blade Cr12 ateel
Transmission Chain
Motor voltage 220V 60Hz 3P or customized
Motor kw 4kw
Cutter system Automatic Hydraulic cutter system
Hydraulic pump kw 3 kw
Machine base frame Steel channel welding with four supported legs
Raw material ppgi
Thickness of raw material 0.3-0.6mm



Corrugated Iron Sheet 12m/Min Roof Tile Roll Forming MachineCorrugated Iron Sheet 12m/Min Roof Tile Roll Forming Machine
