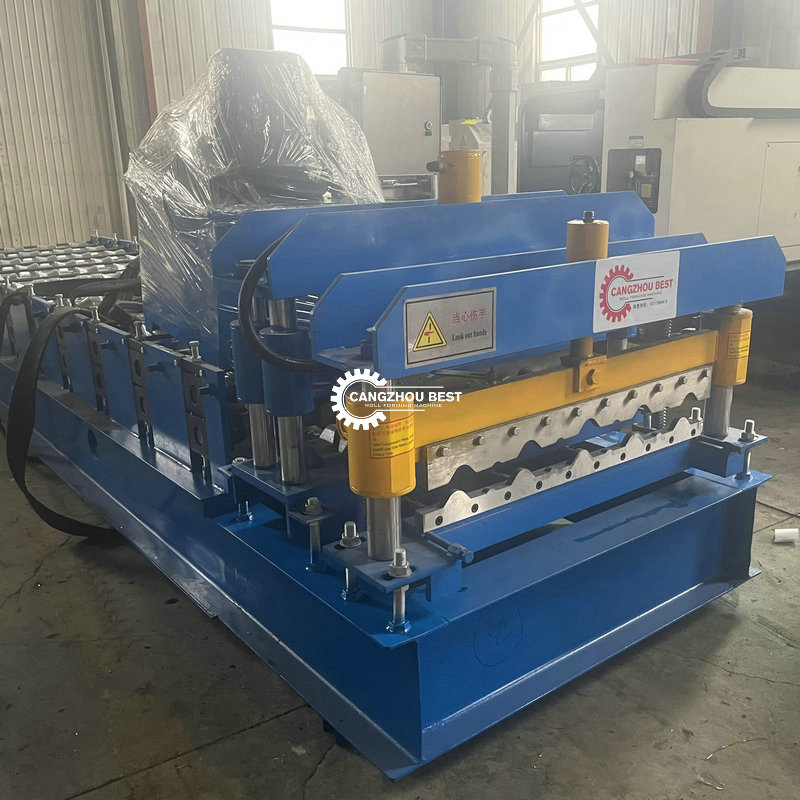

Color Steel 0.3mm Roof Tile Roll Forming Machine For Ibr Sheet

Name: Color Steel 03mm Roof Tile Roll Forming Machine For Ibr Sheet
Brand: BEST
Price: 11500 USD

Buy cheap Color Steel 0.3mm Roof Tile Roll Forming Machine For Ibr Sheet product

Brand Name : BEST

Model Number : YX800

Certification : CE BV SGS

Place of Origin : CHINA

MOQ : 1set

Price : 11500

Payment Terms : L/C, , T/T, Western Union

Packaging Details : Naked

Name : Color Steel Zimbabwe Popular Q Tile/IBR Roof Sheet Making Roll Forming Machine

Coil width : 1000mm

Coil thickness : 0.3-0.8mm

Main power : 3kw

Hydraulic power : 3kw

Speed : 4-6m/min

Contact Now

Color Steel Zimbabwe Popular Q Tile/IBR Roof Sheet Making Roll Forming Machine

The finished product of . Express Steel Profile Glazed Tile Roof Roll Forming Machine is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste. High Quality Color Steel Building Material Roll Forming Machinery.

Machine Specifications

1	Coil Type	Pre-painted coil,Galvanized steel
2	Width	914/1000/1200/1220mm
3	Thickness range	0.3-0.8mm
4	Yield stress(mm)	Q235
5	Effective width	800/1000mm

1	Power Requirement	Voltage	(380V 50HZ),or according client require
		Main Motor power	5.5kw
		Cutter power	3.0kw
2	Forming speed		0-3m/min
3	Forming stations		13 rows
4	Main Frame		300H beam
5	Sidewall thickness		14mm
6	Forming shaft diameter		70mm 0.01mm-0.03mm(Grinding)
7	Chains		1inch chain drive
8	Type of cutting		Roll formed and length-set cutting
9	Control system		PLC control
10	Install dimension(depend on the final design)		8.0m×1.5m×1.3m
11	Total weight (Approx)		4.0T
12	Roller		High grade 45# steel, hard chrome plated
13	Feeding system		Guide type
14	Cutting blade		Cr12
15	Frequency changer		Delta

Manual Decoiler

Work type: passive type
Structure: Steel channel welded for the basic frame
usage:To support the coil and make the uncoiling
Loading capacity: 5 tons
Inner diameter: 450-550mm (manual adjustment)
Coil width: 1250mm
Brake system: manual brake

Main forming machine parameters

1.Feeding device
 One set guiding roller
 Steel plate welded platform to carry the sheet and feed into roll forming system
 Feeding width is adjustable with the handle wheels
2.Rolling shaftShaft material:45# STEEL
 Shaft diameter: 70 mm
 Tempering treatment to prevent deformed and improve hardness
 3.Roller
Shaft material:45# steel
 Chromed treatment, improve the hardness and prevent abrasion, anti corrosion increase of service life
 Rolling station:13 rolling stations
 Work speed: 0-3 m/min
 Machine structure:Steel plate welded structure
 Machine basic frame:50# H steel welded
 Work power:5.5 kw
 Rolling spacer: Anti rusty treatment
 Pull rod: Anti rusty treatment
 4.Transmission
By Chains with cover
 Noted: please fill the lube in case the chains getting dry

PLC Control System

Frequency brand: Delta (original)
 PLC brand: Delta (original)
 Frequency brand: Delta (original)
 Screen type: Touch screen, also have buttons on the panel
 Screen language:English/Chinese
 Cut command: Yes
 Profile length set-up: Yes
 Batch quantity program: Yes
 Low pressure electric part: Schneider brand
 Encode: Omron brand
