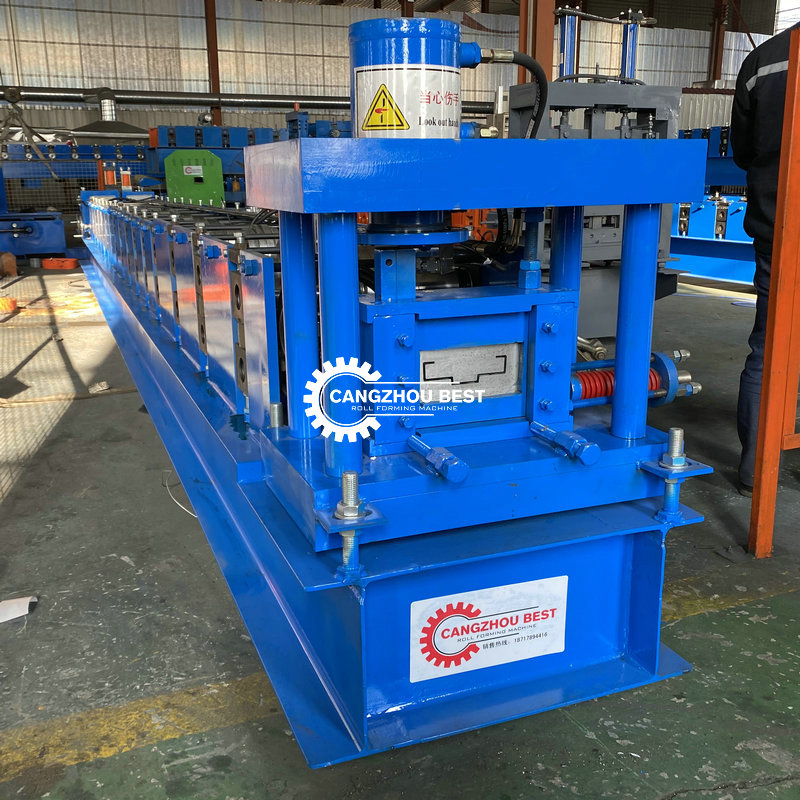

Steel Door Frame Roll Forming Machine with Notch Hole Station
Working flow
Decoiler---------leveling--------punching with servo feeding---------roll forming--------cut to length----------output table
Machine components:
| No. | Name | Qty. |
| 1 | Decoiler | 1set |
| 2 | Feeding and guiding device | 1set |
| 3 | Roll forming machine | 1set |
| 4 | Punching machine with servo feeding | 1set |
| 5 | Hydraulic cutting device | 1set |
| 6 | PLC control box | 1set |
| 7 | output table | 1set |
Techincal description:
A Manual decoiler
(1) Inner Diameter: Φ450 – Φ550 mm
(2) Out Diameter: 1500 mm
(3) Max. Loading Capacity: 3000 kg
B. Main roll forming
| 1 | Main motor power | 5kw |
| 2 | Drive | 1''Chain |
| 3 | Main shaft diameter | ¢80mm |
| 4 | Shaft material | 45#forge steel after treatment |
| 5 | Roller material | 45# steel polished and coated with chrome HRC55-60° chrome coated 0.05mm |
| 6 | Roll station | 16groups |
| 7 | Raw material | 0.3-1.0mm |
| 8 | Working speed | 10m--15m/min |
| 9 | Voltage | 380v,380v,50hz |
C Cutting device
1) Cutting: Hydraulic cutting
2) Auto cutting when reach the set length.
3) Hydraulic power: 7.5KW
4) Blade material: Cr12,quenched 55°-60°
5) Working pressure:16mpa
6) Cutting tolerance: +/- 1.5mm
D Punching
1) Hydraulic punching AFTER roll forming
2) Power:7.5kw
E Control system
| PLC | PLC Frequency Control System with touch screen |
| PLC Brand | Delta |
| Encoder Brand | Omron |
| Length error | ±2mm |
| Transducer | Panasonic |
RFQ
Q: Can you make the machine according to my design or proto type?
A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us
Q: Are you a factory or trading company ?
A: We are a factory?
Q: Where is your factory located?
A: Our factory is located in Botou City,Hebei Province, China. All our clients, from home or abroad, are warmly welcome to visit us !
Q: How do you guarantee the quality of the products?
A: Strict product quality, unqualified resolute don't factory.This is the tenet of our factory
Every one of our products have strict testing procedures, must be 100% quality assurance.
Q: How can we be assured that you will deliver us quality machine with spare parts?
A: 1. Customers to send the technical people to our factory for checking the quality.
2. We can send the technicians to the buyer`s factory for the installation of the machine.
3. Good aftersales-service, its free of charge during the warranty period.
